设计名称

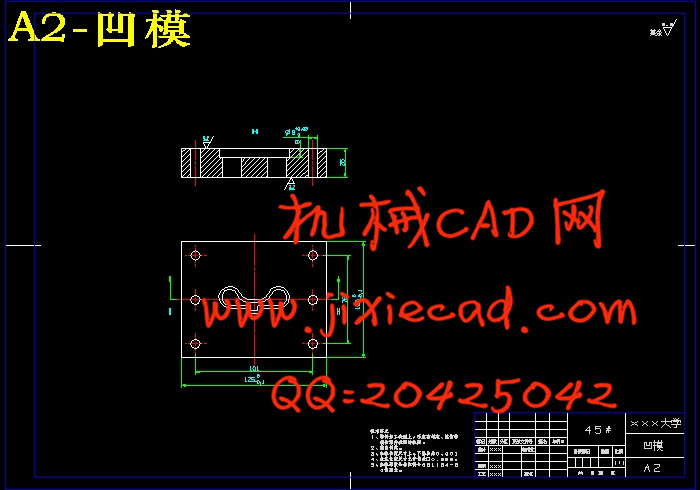

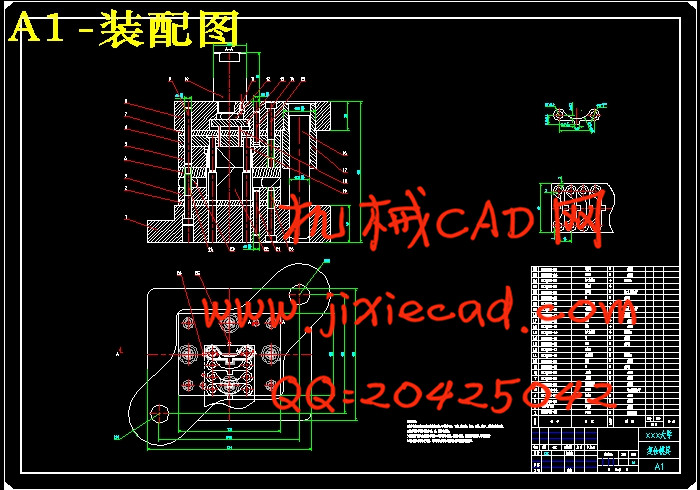

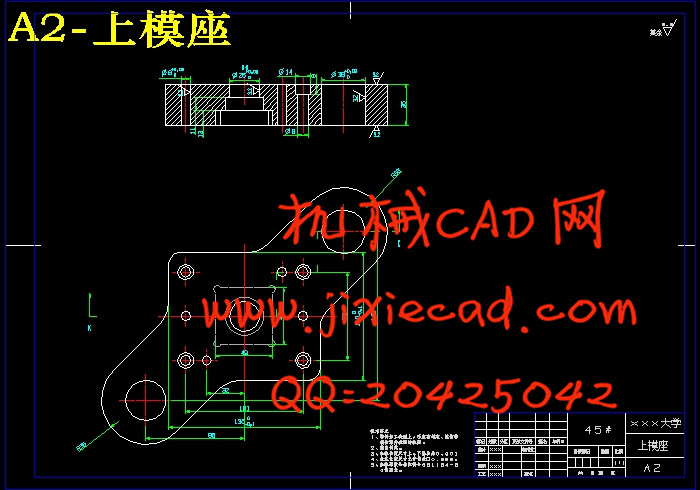

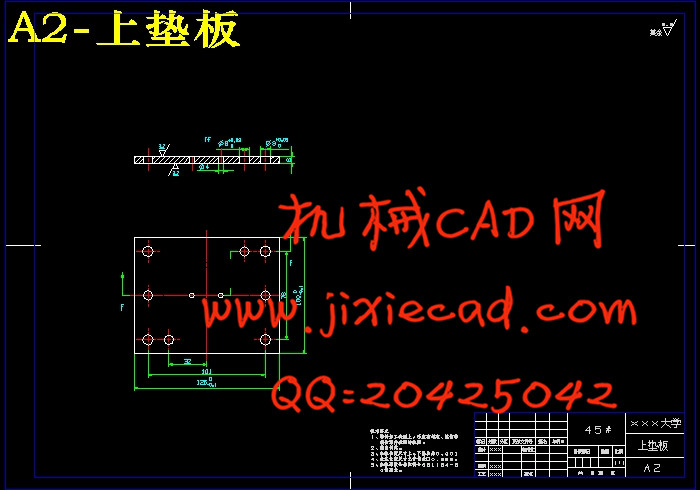

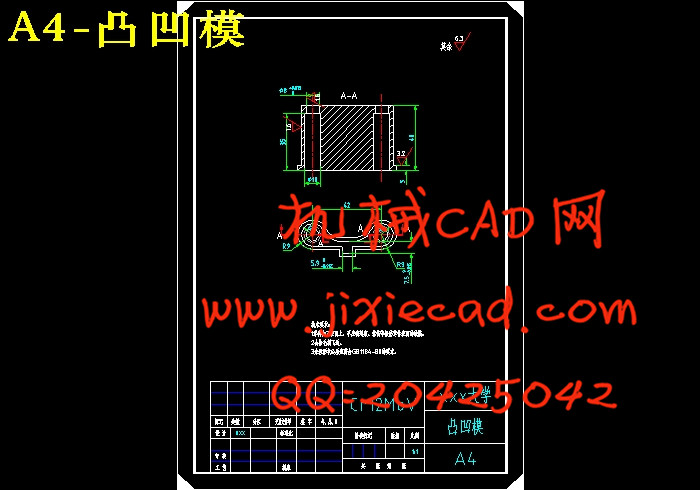

锁片复合模具设计【锁片不锈钢门扣插销防盗门锁扣箱复合冲压模具设计】【异形锁芯】【说明书+CAD+ROE】
设计编号
JX5755
设计软件
AutoCAD,Word,PROE
包含内容

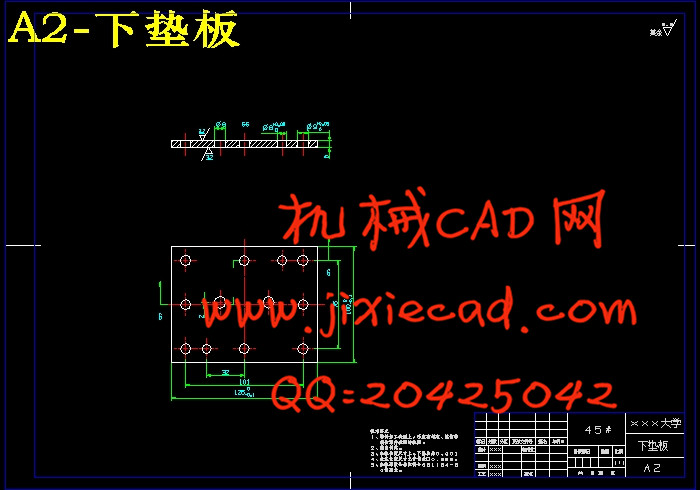

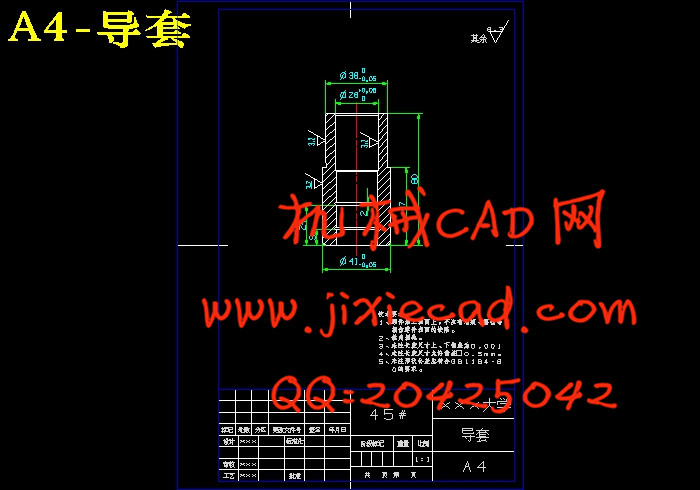

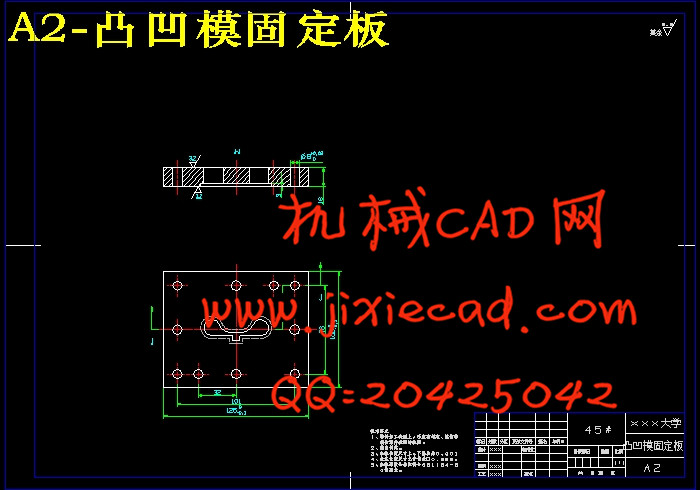

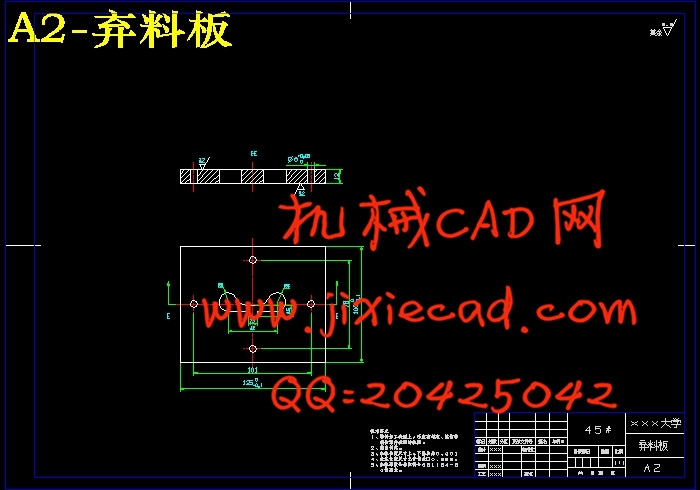

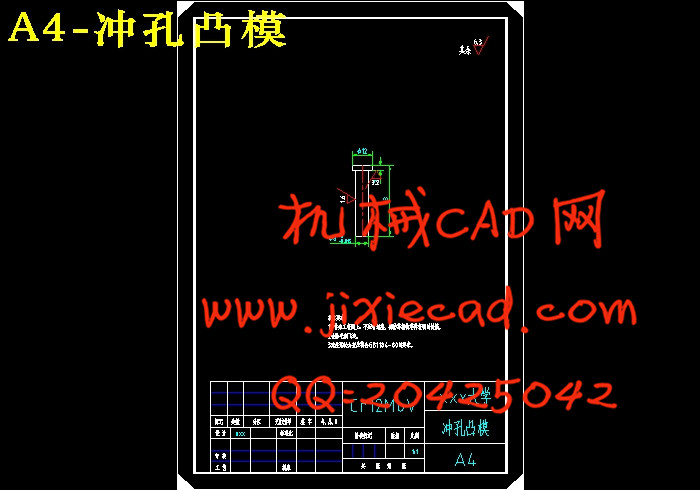

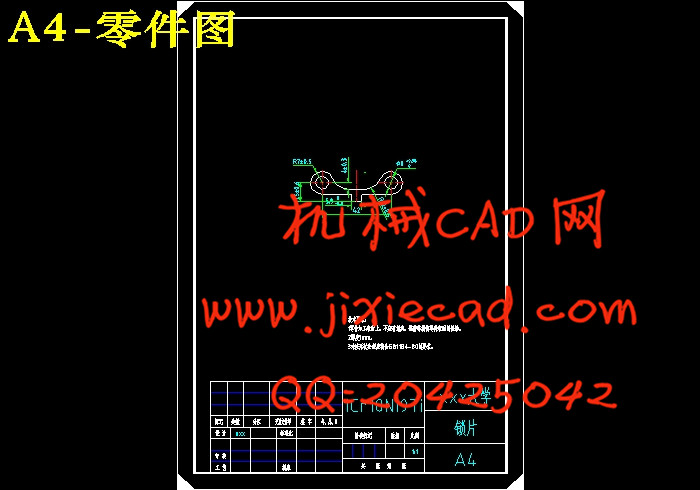

见右侧图片
说明字数

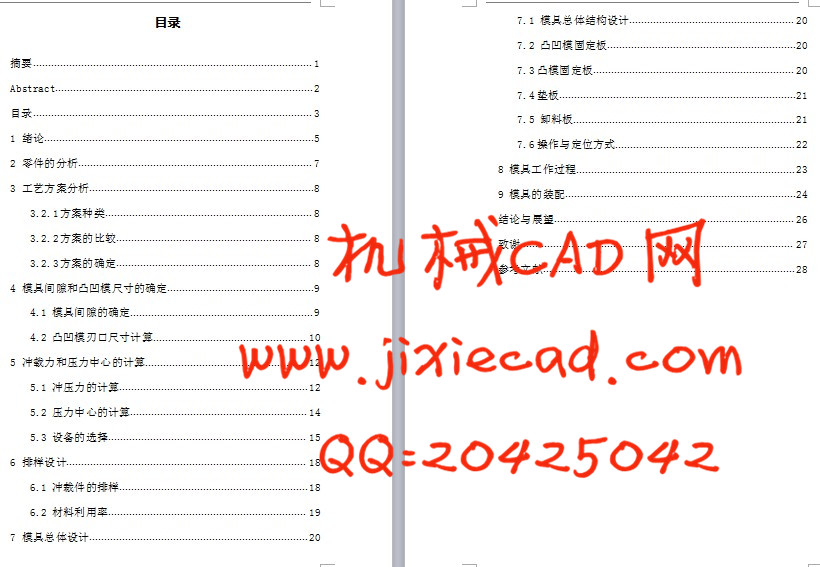

见下方截图
图纸数量

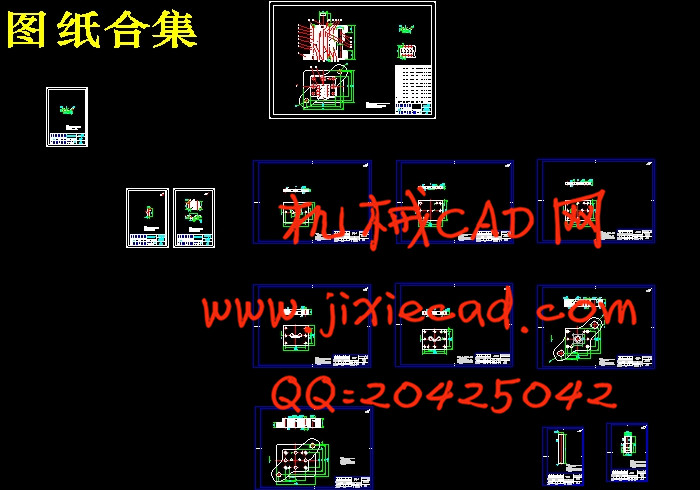

见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2017-08-16
整理人
admin
购买流程
查看如何购买本站设计

设计简介

摘要

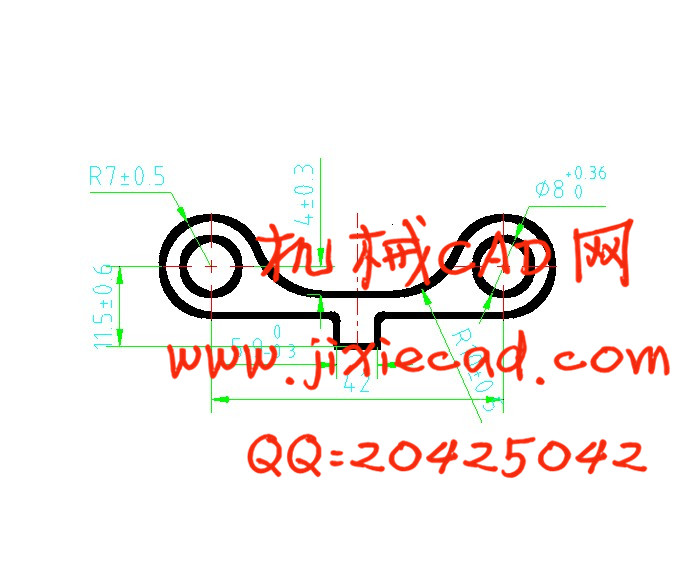

本次设计了一套冲压模具在说明书中第一部分，主要叙述了冲压模具的发展状况，说明了冲压模具的重要性与本次设计的意义，对冲压件的工艺分析，工艺方案的确定。通过，对零件排样图的设计，完成了材料利用率的计算。再进行冲裁工艺力的计算和冲裁模工作部分的设计计算。最后对主要零部件的设计和标准件的选择，为本次设计模具的绘制和模具的成形提供依据，以及为装配图各尺寸提供依据。通过前面的设计方案画出模具各零件图和装配图。
关键字：冲压；工艺:模具结构

Abstract

In text file the first part, described to wash the development condition that press the molding tool primarily, explain to wash the importance that press the molding tool and the meaning of this design, to craft that washing and pressing the piece analyzes, the craft project really settles.Pass, line up the design of the kind diagram to the spare parts, complete the calculation of the material utilization.Proceed again the calculation that wash cut the craft dint with wash to cut mold work part of designs calculation.Finally to the design of the main the parts of zero with the choice of the standard piece, draw for this design molding tool to take shape the offering with the molding tool according to, and for assemble each size of diagram offering according to.The design project passing before draws an each spare parts of molding tool diagram with assemble the diagram.
Keyword:Wash to press;Fal
