设计名称
填料箱盖机械加工工艺规程和夹具课程设计【钻6-φ13.5孔】【版本5】【含三维】
设计编号
K039-A4-5
设计软件
AutoCAD,Word,三维
包含内容

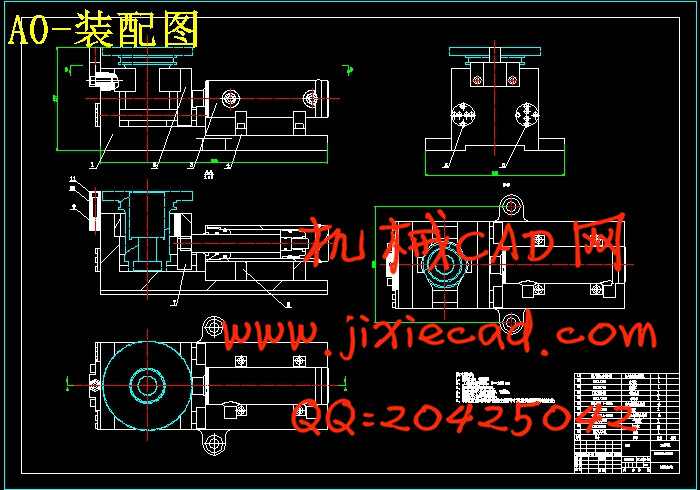

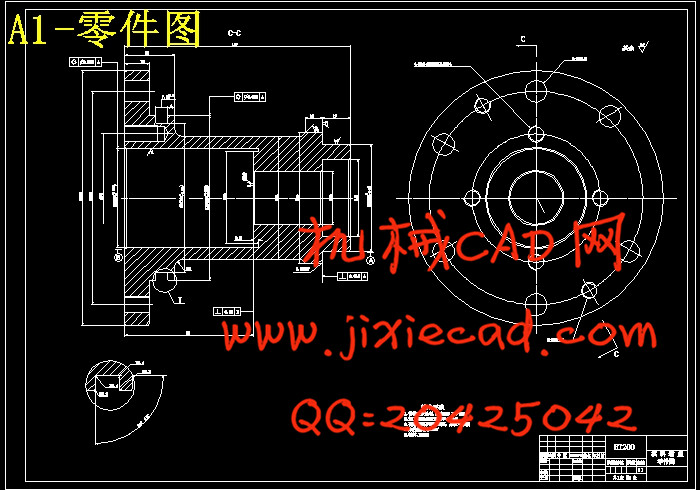

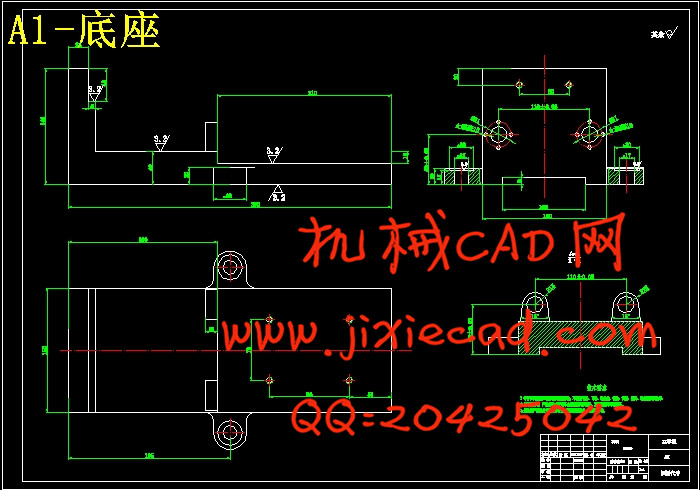

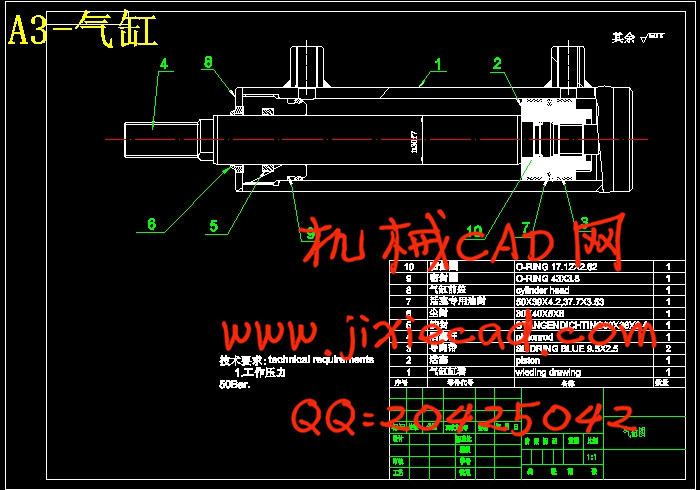

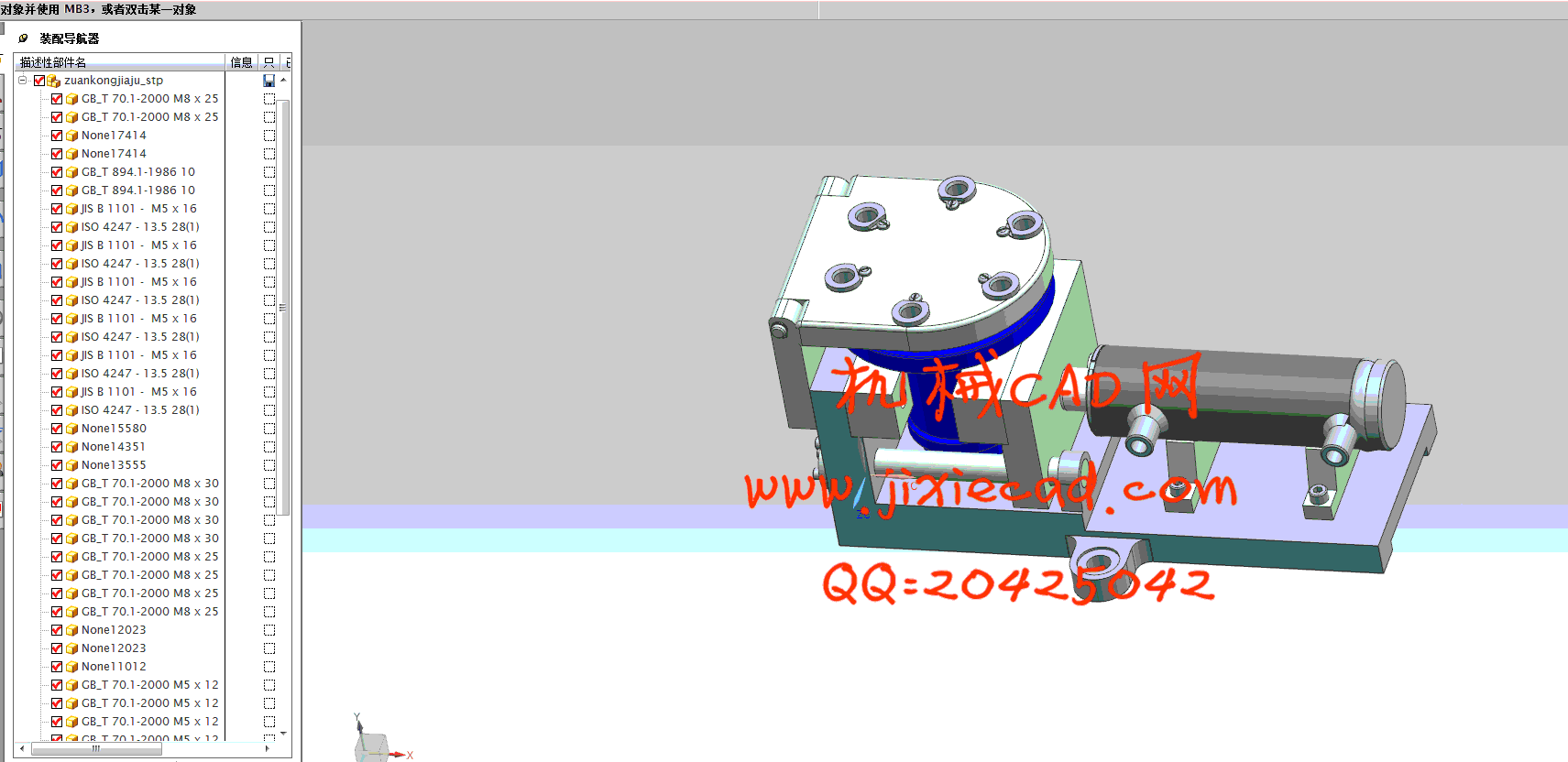

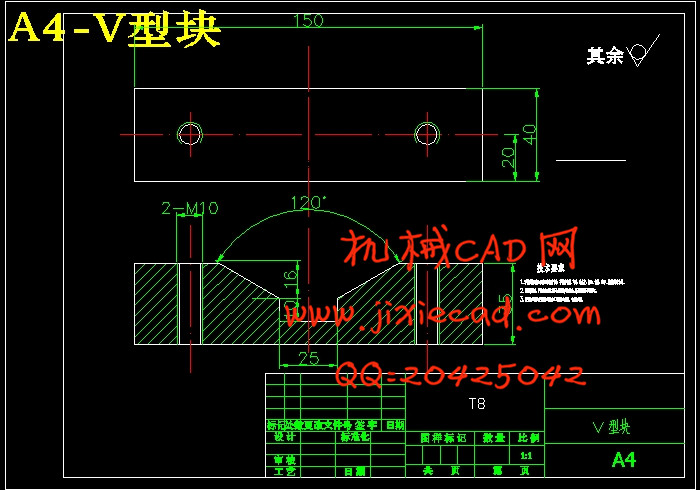

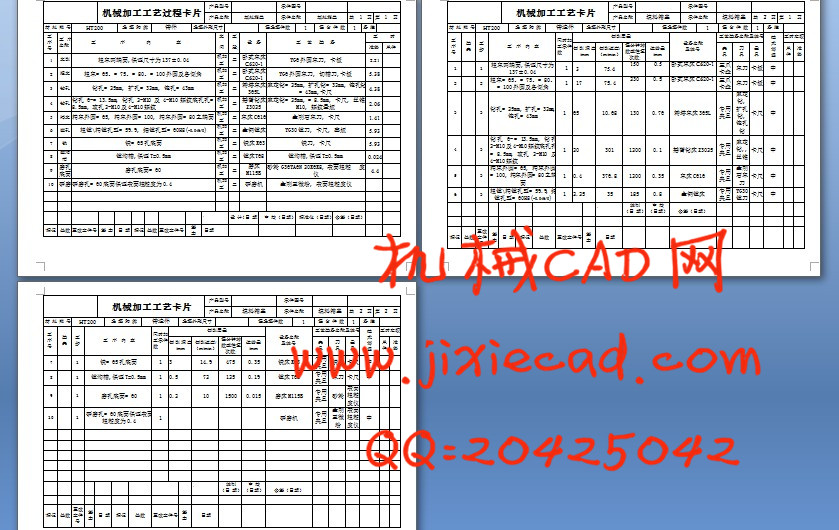

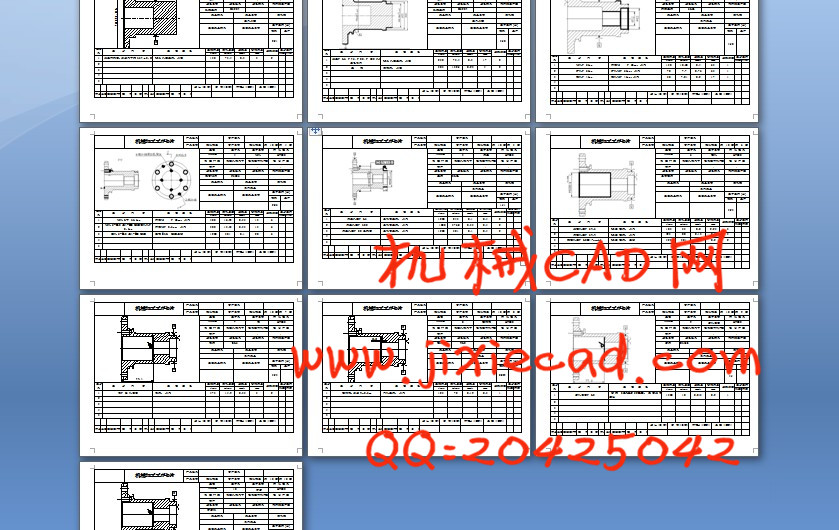

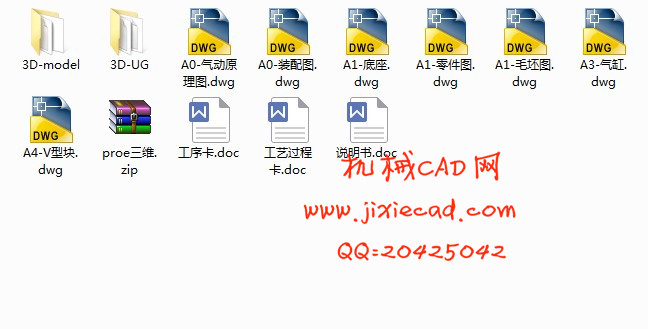

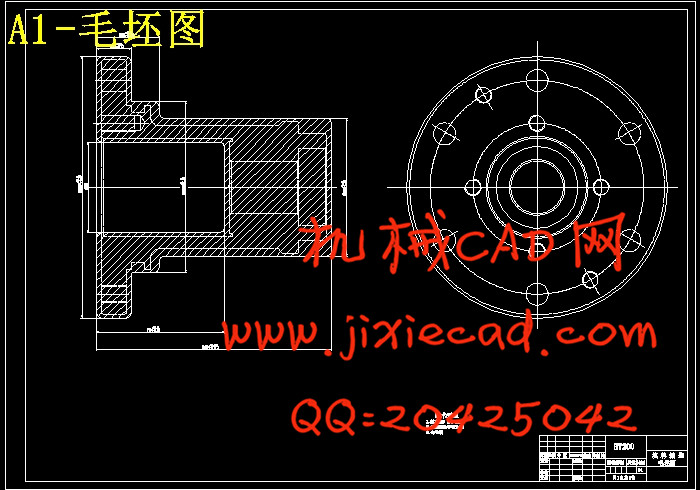

见右侧图片
说明字数
见下方截图
图纸数量
见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2018-06-24
整理人
admin
购买流程
查看如何购买本站设计

设计简介

摘要

本文是对填料箱盖零件加工应用及加工的工艺性分析，主要包括对零件图的分析、毛坯的选择、零件的装夹、工艺路线的制订、刀具的选择、切削用量的确定、加工工艺文件的填写。选择正确的加工方法，设计合理的加工工艺过程。此外还对填料箱盖零件的两道工序的加工设计了专用夹具.
机床夹具的种类很多，其中，使用范围最广的通用夹具，规格尺寸多已标准化，并且有专业的工厂进行生产。而广泛用于批量生产，专为某工件加工工序服务的专用夹具，则需要各制造厂根据工件加工工艺自行设计制造。本论文夹具设计的主要内容是设计两套气动夹具。

关键词：填料箱盖，加工工艺，加工方法，工艺文件，夹具

Abstract

This article is about the packing box cover parts processing application and processing technology and analysis, including the parts of the plan, the choice of blank, the clamping, the craft route making, tool selection, the determination of cutting conditions, processing documents. Choose the correct processing methods, design the reasonable process. In addition to the stuffing box cover part two process designing special fixture.
Machine tool fixture of many kinds, among them, the most widely used common fixture, size specifications have been standardized, and a professional production plant. While widely used in batch production, specially for a workpiece processing services for the fixture, it needs each factory according to workpiece machining technology to design and manufacture. In this paper, fixture design are the main contents of design with two sets of pneumatic fixture.
Key words: packing box cover, processing technology, processing method, process documentation, fixture
