Coupling (DS 395) design
Abstract
This article introduced the automobile clutch developing process andits in the automobile industry application, in many years experienceand the technical improvement causes the people gradually to tend tothe first choice list type friction force coupling, because ithas the driven partial rotations inertia young, radiation good,structure simple, adjustment convenient, size compact, separationthorough and so on merit, moreover because takes the certain measurein the structure, has been able to achieve the joint to be smooth,therefore the present widely uses in a big way, center, in small eachkind of vehicle type.
Now the list type friction clutch quite consummates in thestructural design aspect Uses has axial elastic enhancedthe coupling joint smoothness Clutch driven disk always becomes theChinese dress to have the torque shock absorber, had prevented thetransmission system reverse resonated, reduced the noise andmoves the load.
Along with the people to the automobile comfortable performancerequirement enhancement, the coupling had the unceasing improvement inthe original foundation, while more and more many uses with thevehicle on has the double quality flywheel the torque shock absorber,can effectively reduce noise.
Elaborated coupling (DS 395) the friction drive organization design,presses the plate design, design step. Also has analyzedthe coupling common breakdown to the coupling the influence, as wellas common trouble shooting general method.


Key word:  the friction drive organization ; presses plate;
           lid of coupling; common trouble shooting

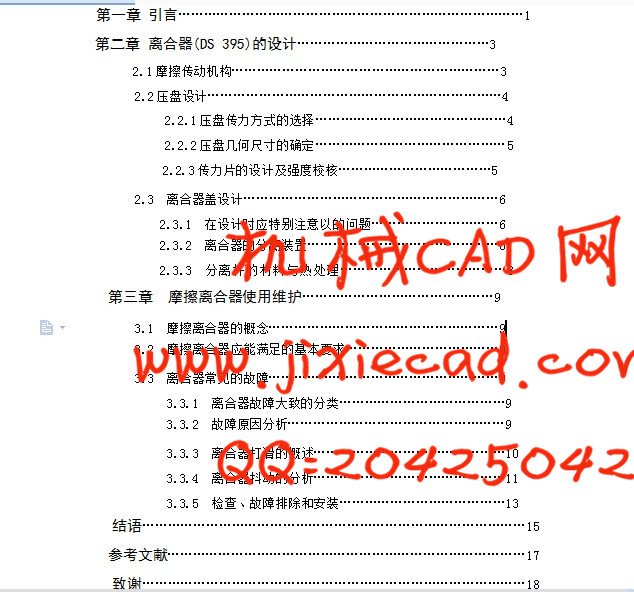

目  录
摘要…………………………………………………………………………………I
ABSTRACT…………………………………………………………………………II
第一章 引言………………………………………………………………………1
第二章 离合器(DS 395)的设计………………………………………3
2.1摩擦传动机构………………………………………………………3

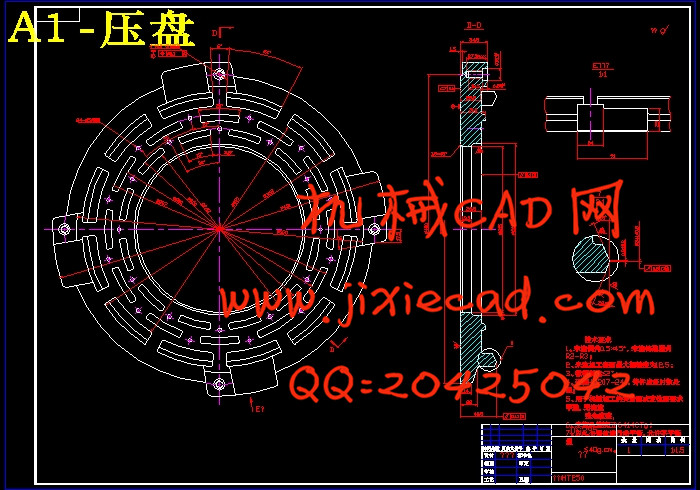

2.2压盘设计……………………………………………………………4
2.2.1压盘传力方式的选择………………………………………4
2.2.2压盘几何尺寸的确定………………………………………5

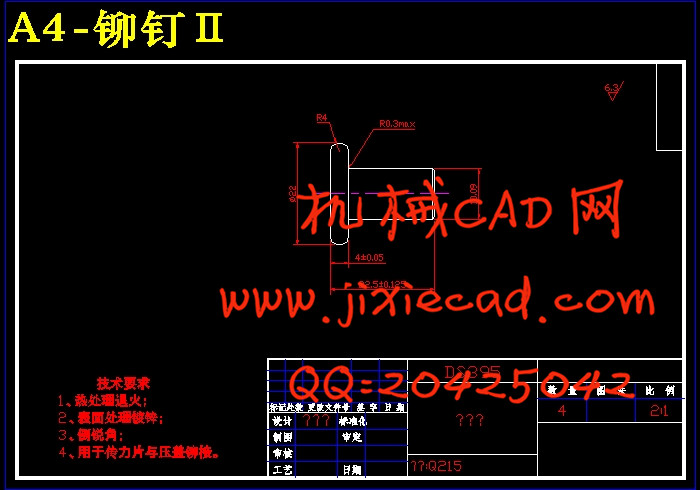

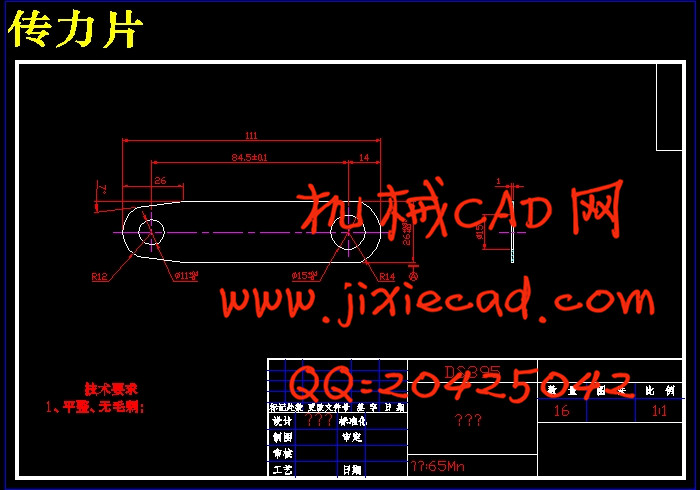

      2.2.3传力片的设计及强度校核………………………………5

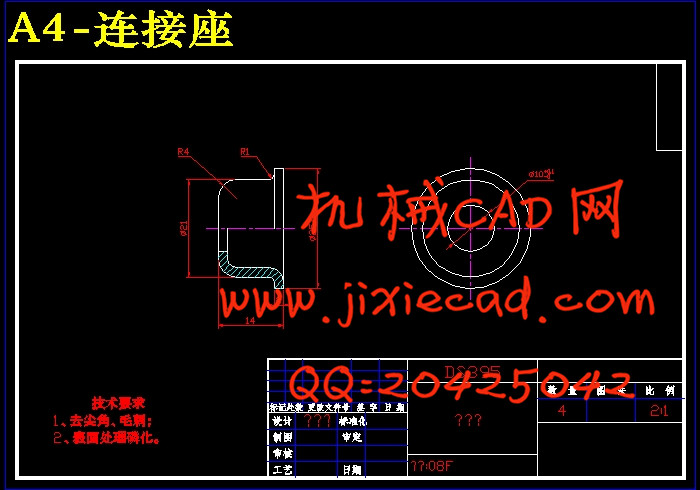

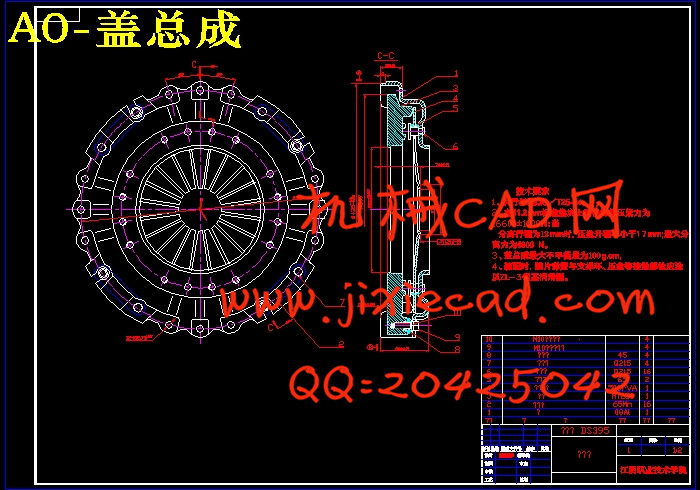

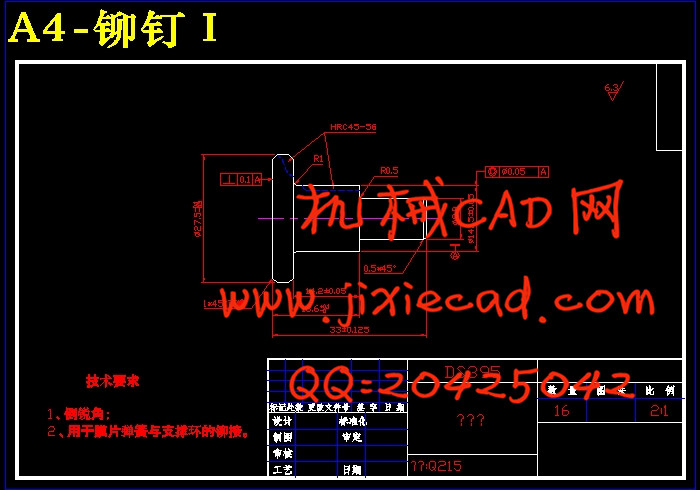

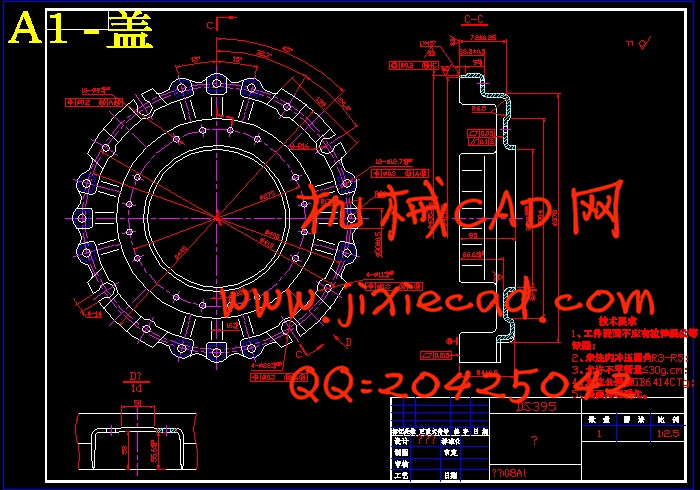

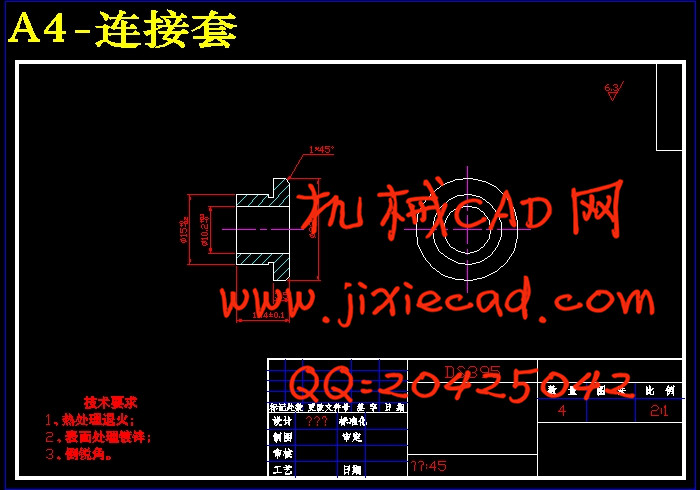

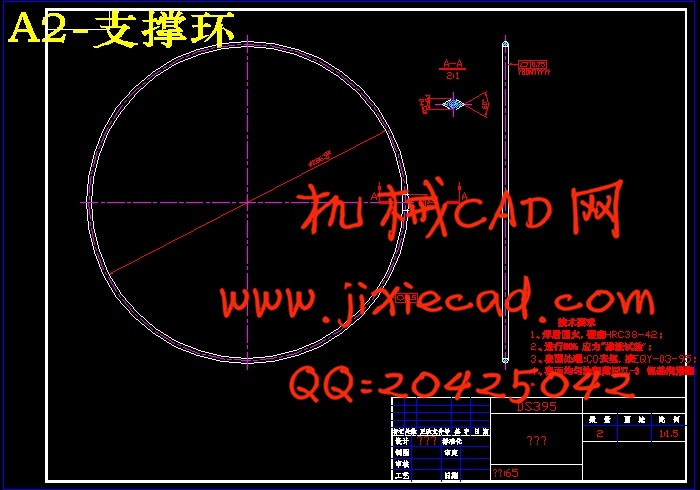

2.3  离合器盖设计……………………………………………………6
2.3.1  在设计时应特别注意以的问题…………………………6

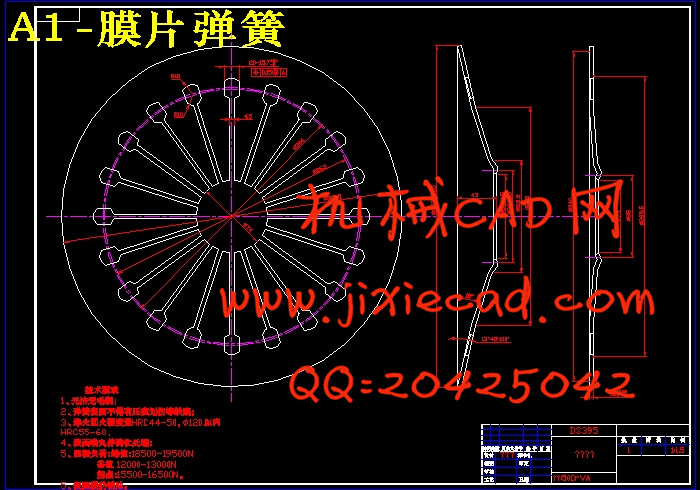

2.3.2  离合器的分离装置………………………………………6
2.3.3  分离杆的材料与热处理…………………………………8
第三章  摩擦离合器使用维护………………………………………9
3.1  摩擦离合器的概念………………………………………………9
3.2  摩擦离合器应能满足的基本要求………………………………9
3.3  离合器常见的故障………………………………………………9
3.3.1  离合器故障大致的分类…………………………………9
3.3.2  故障原因分析……………………………………………9
3.3.3  离合器打滑的概述………………………………………10
3.3.4  离合器抖动的分析………………………………………11
3.3.5  检查、故障排除和安装…………………………………13
结语………………………………………………………………………………15
参考文献…………………………………………………………………………17
致谢………………………………………………………………………………18
